Valve Operation that requires no effort

Valve Operation that requires no effort

Valve Operation that requires no effort

Waltr V is a smart valve controller that manages water inflow to multiple tanks using one pump, with each tank equipped with its own Waltr V. Installed on the inflow pipe of each tank, it regulates water flow by opening or closing the valves. When a tank is full, the valve for that tank closes automatically to prevent overflow, while the other valves remain open until their tanks are filled.

Automate your Valve

Waltr V - Automatic Vavle Controller
Waltr V - Automatic Vavle Controller
Waltr V - Automatic Vavle Controller

Fits Seamlessly into Your Water Line

This smart valve integrates effortlessly into your water distribution system, ensuring smooth, uninterrupted operation. It precisely controls the flow of water, adapting to real-time needs.

Waltr App displaying Valve operations and water level which the waltr v works corresponding to
Waltr App displaying Valve operations and water level which the waltr v works corresponding to
Waltr App displaying Valve operations and water level which the waltr v works corresponding to

Connected with Waltr A and Waltr C

The system works with Waltr A and Waltr C to manage water flow. Waltr A monitor's water level, Waltr C activates the pump, and the valve controls tank filling, avoiding overflow.

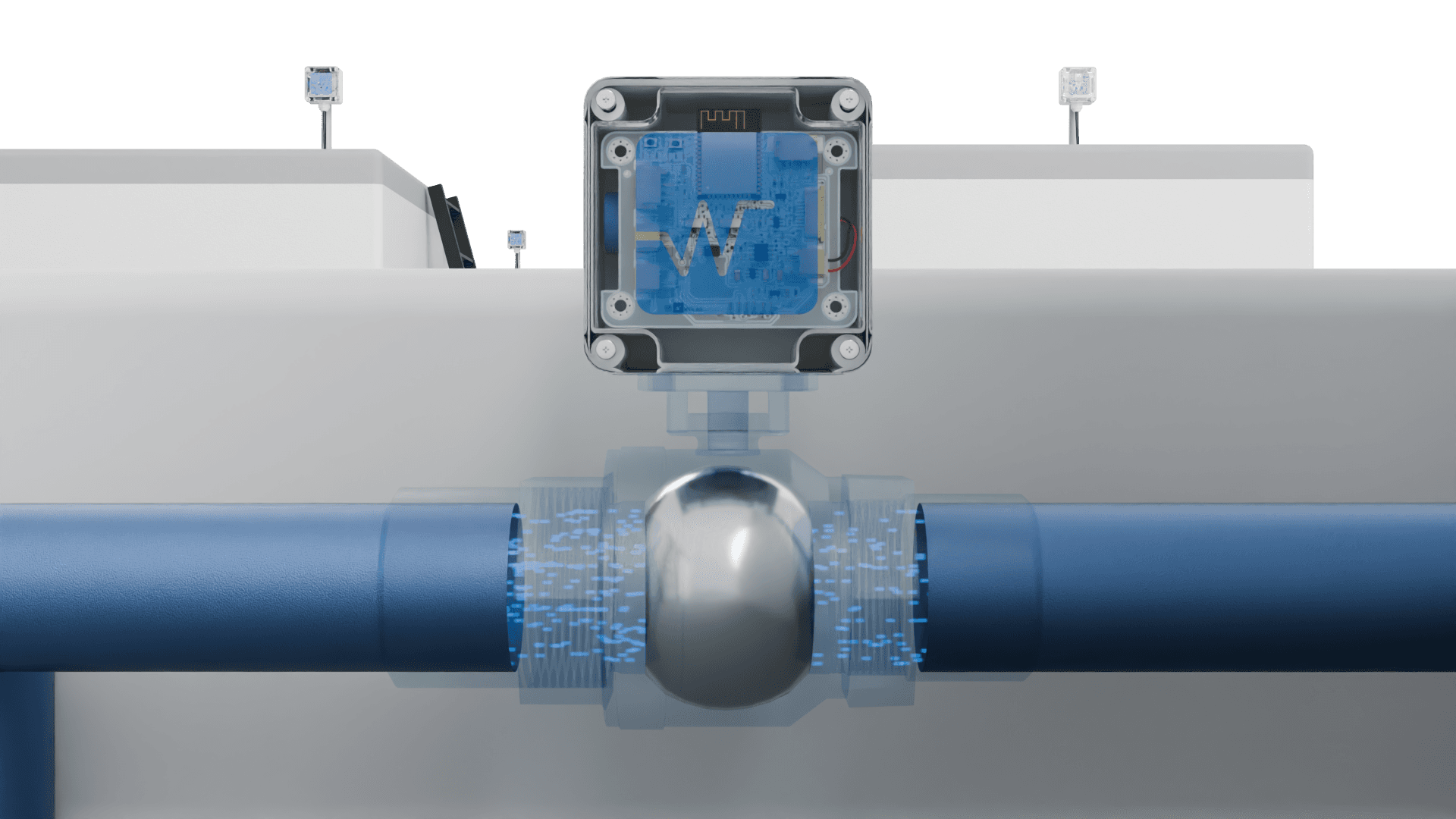

Waltr V - Valve controller displaying how it works
Waltr V - Valve controller displaying how it works
Waltr V - Valve controller displaying how it works

Real-Time Valve Monitoring

All valve activity is tracked in the Waltr app. With real-time updates on valve status, you can easily monitor which tanks are filling and review historical data on valve operation.

Features

Image that represents the flow waltr automates water systems
Image that represents the flow waltr automates water systems

Fully Automated for Effortless Performance

Waltr V operates automatically, removing the need for manual intervention. Its advanced technology ensures smooth and reliable performance.

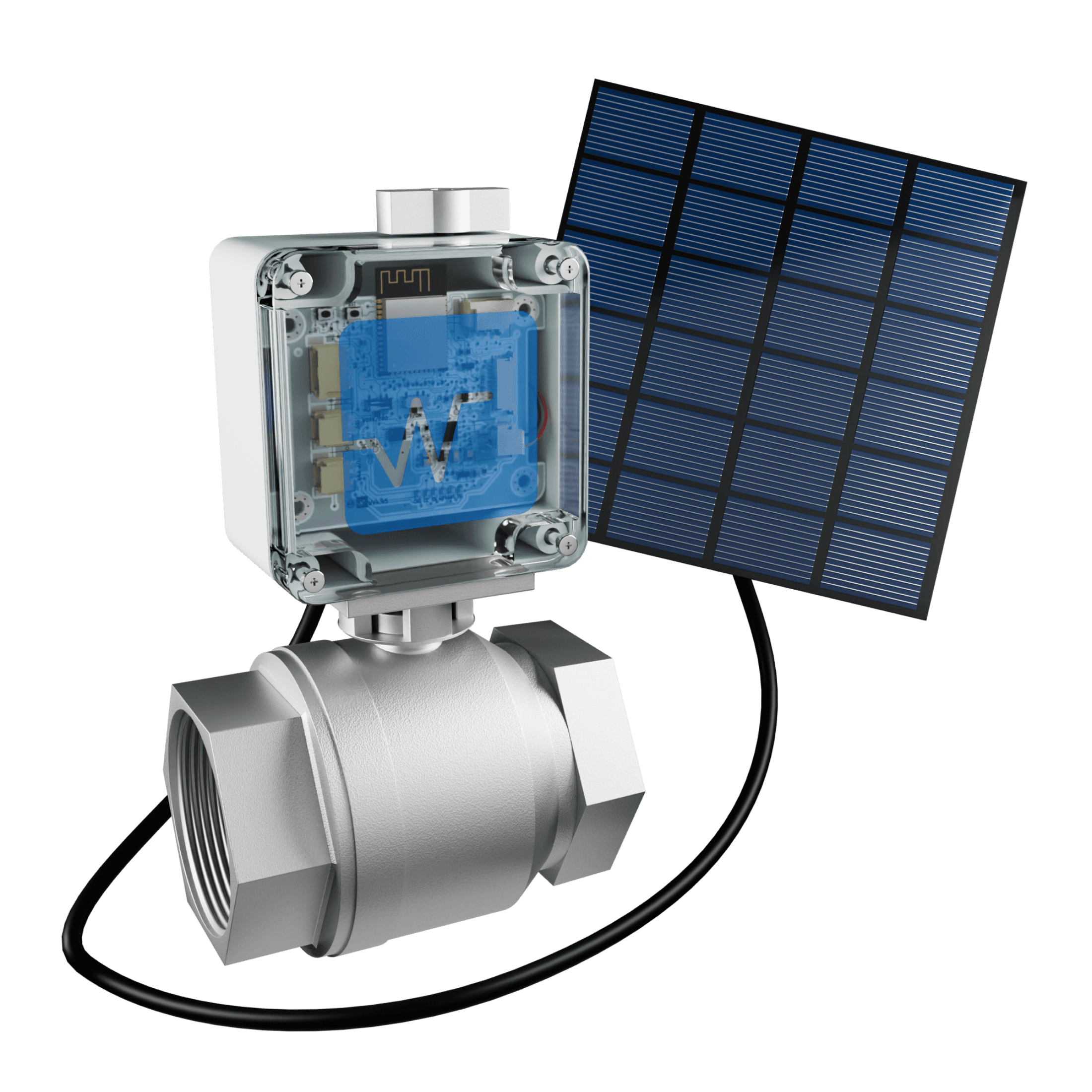

Waltr V - Automatic vavle controller with solar panel
Waltr V - Automatic vavle controller with solar panel

Wireless Functionality for Easy Operation

Waltr V uses wireless technology, eliminating the need for physical wiring. It’s solar powered, offering flexibility and easy installation.

Internet-Connected for Remote Monitoring and Control

With internet connectivity, Waltr V allows you to monitor and control the system remotely through the Waltr app, giving you access from anywhere.

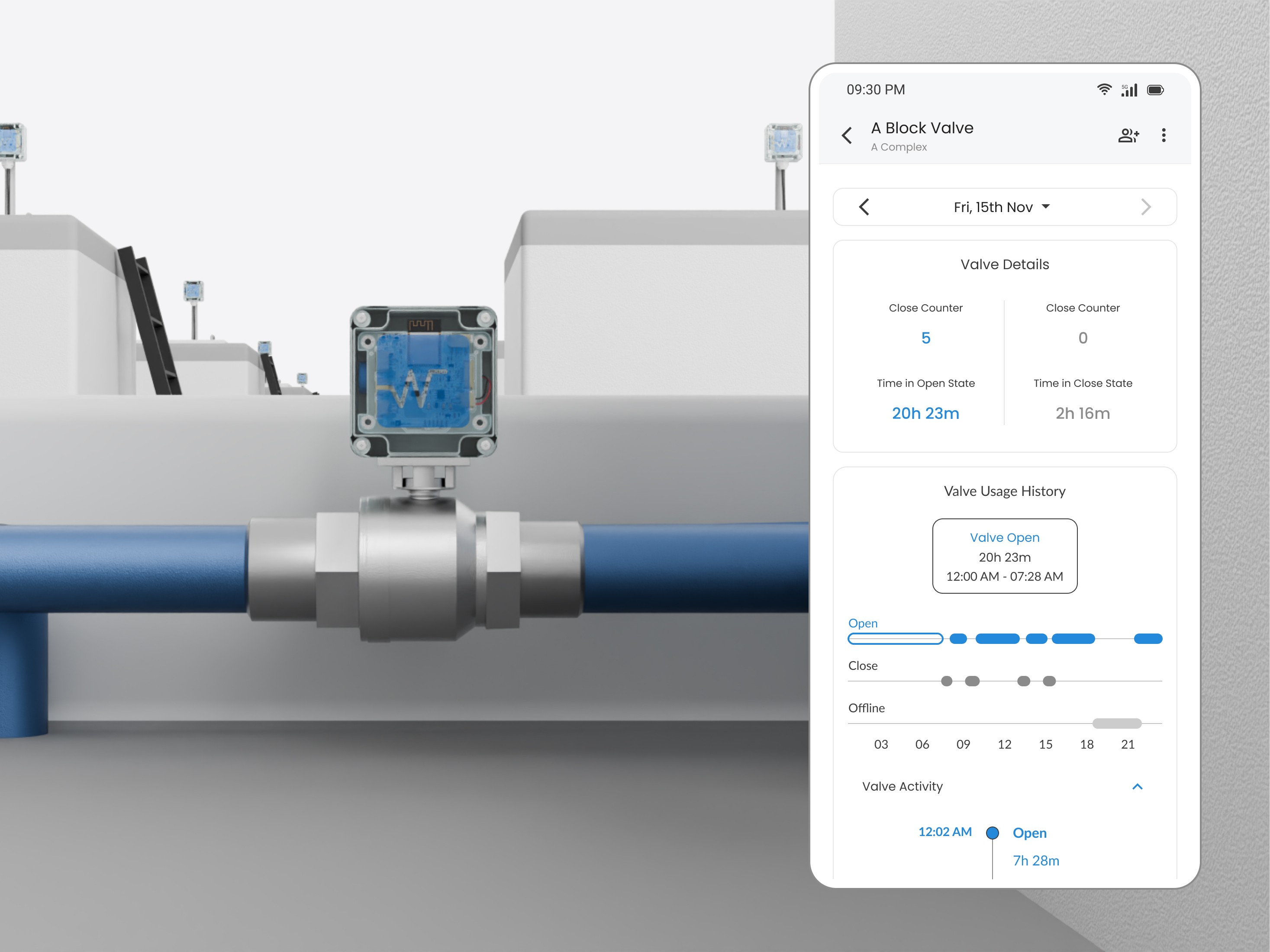

Waltr V - Autoamtic Valve Controller with remote monitoring of the valve operation and history
Waltr V - Autoamtic Valve Controller with remote monitoring of the valve operation and history

Technical Specifications

Dimensions

Waltr V device - 82 x 80 x 55 millimetres-weight 2 KG

Solar Panel 170x 135x 55 millimetres weight 80 grams

Torque & Work Pressure

Max 10NM and 1.6Mpa - Open/Close time <20 seconds

Battery

Rechargeable Li-Ion Battery

Capacity 2500mAH

Wireless

Wi Fi 802.11 b/g/n 2.4GHz

App Requirements

App Requirements Android 5.0 Lollipop / iOS 10 or newer OS

Package Contents

Waltr V Device

Solar Panel / DC Adapter

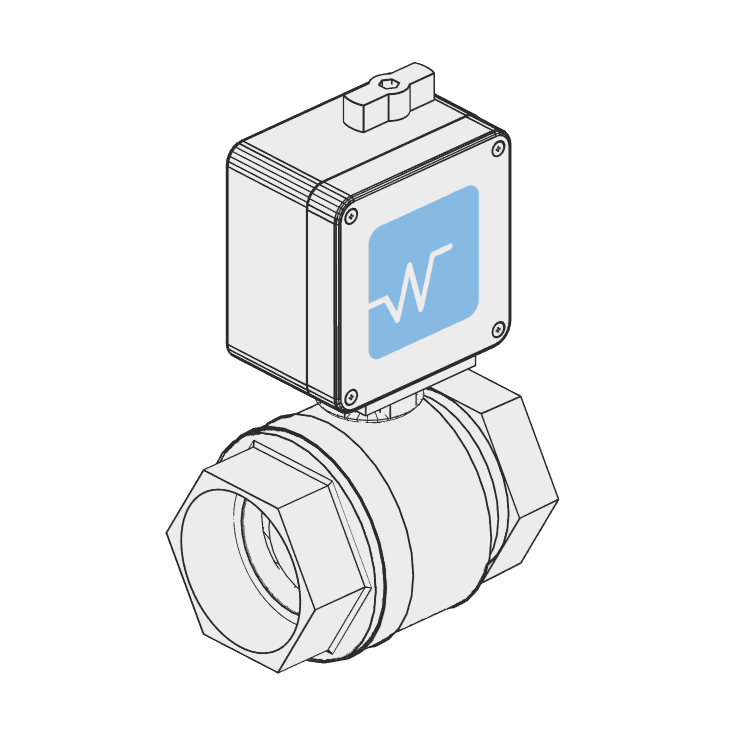

Waltr V - Dimensions Image
Waltr V - Dimensions Image
Waltr V - Dimensions Image
